The Future of High Speed Interconnect is Here! Chelsio’s Terminator 7 (T7) Unified Wire Adapters
Chelsio is delivering the future of high speed interconnect with its seventh generation technology, the Terminator 7 (T7) Unified Wire Adapters.
Chelsio’s 7th-generation ASIC technology—comprising the T7, which serves as a full-featured DPU or dedicated storage adapter variant, and the S7 Smart NIC features a PCI Express 5.0 host bus interface.
Terminator Features |
The T7 supporting 4-port 1/10/25/50G, 2-port 1/10/25/40/50/100/200G or 4x100G, and 1-port 40/100/200G (with integrated FPGA configurations), and the S7 Smart NIC supporting 1-port 400G, 4×1/10/25/50/100G, 2x200G, or multi-port 1/10/25/40/50/100/200G configurations —features a PCI Express 5.0 host bus interface optimized for storage, cloud computing, HPC, virtualization, and datacenter networking, with the T7 adding targeted support for AI workloads. This road-tested, tier-1 OEM-proven architecture delivers high performance and efficiency by utilizing on-board hardware to offload heavy communication processing from the host system—including TCP/IP, Unified RDMA (RoCEv2 & iWARP), iSCSI, NVMe-oF, NVMe/TCP, and TLS/IPsec, NVGRE and VXLAN protocols, alongside user-mode SPDK framework support for NVMe/TCP and iSCSI. By handling intensive protocol processing directly on the ASIC chip, both devices drive higher bandwidth, lower latency, and reduced power consumption while freeing up valuable host CPU cycles and maintaining backward compatibility with predecessor T4, T5, and T6 software without modification. Designed with distinct memory layouts and form factors (including HHHL, FHHL, and OCP3 options), the T7 relies on 8GB to 16GB of on-board card memory to handle compute-independent workloads across its standard storage adapters and dedicated DPU variants equipped with 8xArm cores, 8xRISC cores, and 1xDFP, whereas the S7 operates as a strictly memory-free Smart NIC that leverages host memory to deliver high-performance protocol offloads at an aggressive price point.
Chelsio is proud to offer the following line of highest quality products:
 S7250High Performance, Dual Port, Programmable 1/10/25/50GbE Smart NICChelsio’s S7250 is a dual port 1/10/25/50GbE Smart NIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, embedded, virtualization, security, AI, and other datacenter networking applications. The S7250’s architecture utilizes Chelsio’s seventh generation DPU technology that support all offloads using host memory. Thanks to an on-board hardware, that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up host CPU cycles for the user applications.
 S7450High Performance, Quad Port, Programmable 1/10/25/50GbE Smart NICChelsio’s S7450 is a quad port 1/10/25/50GbE Smart NIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, embedded, virtualization, security, AI, and other datacenter networking applications. The S7450’s architecture utilizes Chelsio’s seventh generation DPU technology that support all offloads using host memory. Thanks to an on-board hardware, that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up host CPU cycles for the user applications.
 S7450-OCPHigh Performance, Quad Port, Programmable 1/10/25/50GbE Smart NICChelsio’s S7450-OCP is a quad port 1/10/25/50GbE Smart NIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, embedded, virtualization, security, AI, and other datacenter networking applications. The S7450-OCP’s architecture utilizes Chelsio’s seventh generation DPU technology that support all offloads using host memory. Thanks to an on-board hardware, that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up host CPU cycles for the user applications. It supports OCP3 TSFF type pf form factor.

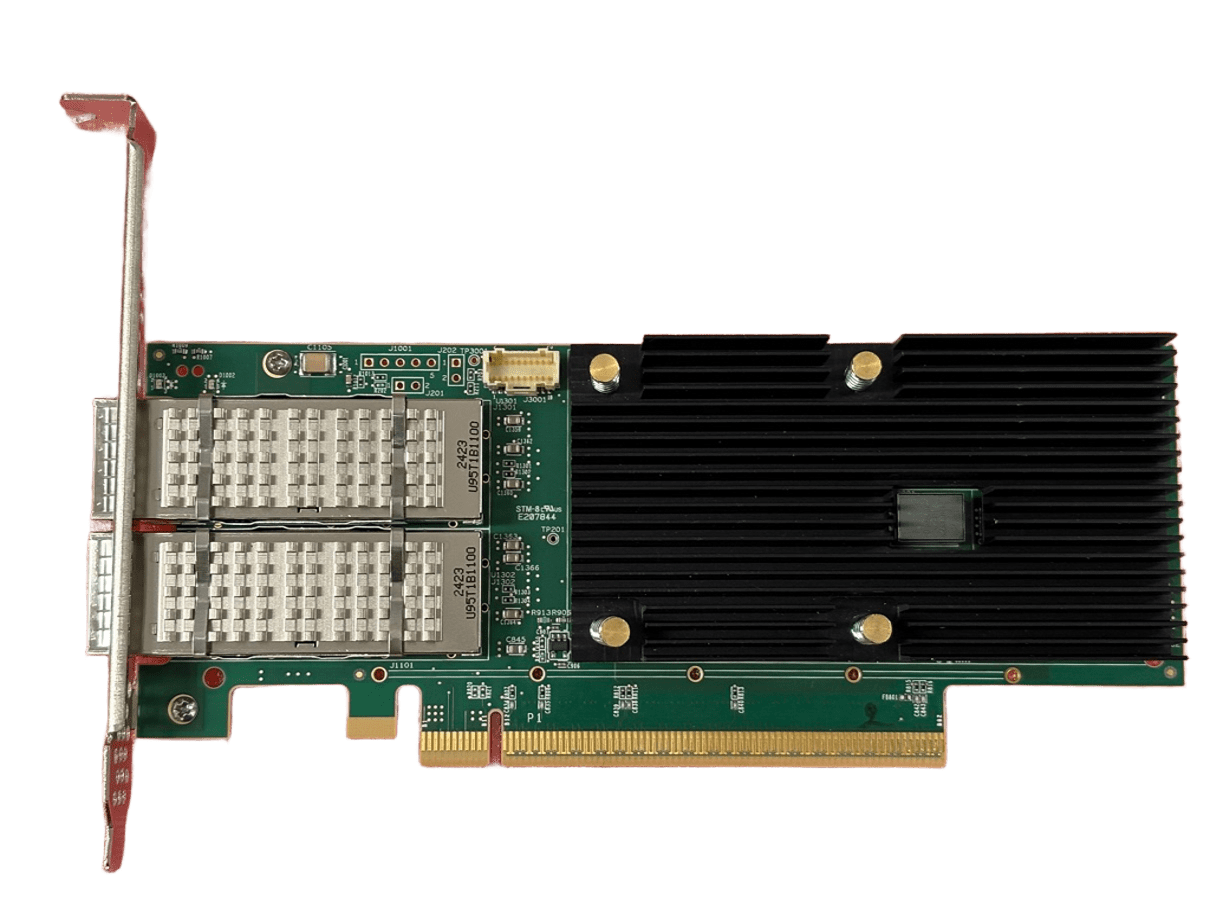

 S72200High Performance, Dual Port, Programmable 1/10/25/40/50/100/200GbE Smart NICChelsio’s S72200 is a dual port 40/50/100/200GbE Smart NIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, embedded, virtualization, security, AI, and other datacenter networking applications. The S72200’s architecture utilizes Chelsio’s seventh generation DPU technology that support all offloads using host memory. Thanks to an on-board hardware, that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up host CPU cycles for the user applications.
 S72200-OCPHigh Performance, Dual Port, Programmable 40/50/100/200GbE Smart NICChelsio’s S72200-OCP is a dual port 40/50/100/200GbE Smart NIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, embedded, virtualization, security, AI, and other datacenter networking applications. The S72200-OCP’s architecture utilizes Chelsio’s seventh generation DPU technology that support all offloads using host memory. Thanks to an on-board hardware, that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up host CPU cycles for the user applications. It supports OCP3 TSFF type pf form factor.
 S7210-BTHigh Performance, Dual Port, Programmable 1/10GbE Base-T Smart NICChelsio’s S7210-BT is a dual port 1/10G Base-T GbE Smart NIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, embedded, virtualization, security, AI, and other datacenter networking applications. The S7210-BT’s architecture utilizes Chelsio’s seventh generation DPU technology that support all offloads using host memory. Thanks to an on-board hardware, that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up host CPU cycles for the user applications.
 S7410-BT-OCPHigh Performance, Quad Port, Programmable 1/10GbE Base-T Smart NICChelsio’s S7410-BT-OCP is a quad port 1/10G Base-T GbE Smart NIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, embedded, virtualization, security, AI, and other datacenter networking applications. The S7410-BT-OCP’s architecture utilizes Chelsio’s seventh generation DPU technology that support all offloads using host memory. Thanks to an on-board hardware, that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up host CPU cycles for the user applications. It supports OCP3 TSFF type pf form factor.
 S71400High Performance, Single Port, Programmable 400GbE SmartNICChelsio’s S71400 is a quad port 400GbE SmartNIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, virtualization, security, and other datacenter networking applications. The S71400’s architecture utilizes Chelsio’s seventh generation DPU technology that support all offloads using host memory. Thanks to an on-board hardware, that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up host CPU cycles for the user applications. It supports 4x100G or 4x2x50G or 2×40/100/200G 1×40/100/200G .
 T72200High Performance, Dual Port, Programmable 1/10/25/40/50/100/200GbE Storage AdapterChelsio’s T72200 is a dual port 40/100/200GbE SmartNIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, virtualization, security, and other datacenter networking applications. The seventh generation T7 ASIC technology from Chelsio provides the highest performance and efficiency, with dramatically lower host-system CPU communications overhead thanks to on-board hardware that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up the host CPU cycles for the user applications. As a result, the system benefits from higher bandwidth, lower latency, and reduced power consumption. It also provides a flexible direct data placement capability for regular TCP sockets, with all the benefits of zero-copy and kernel bypass without rewriting the applications.
 T72200-FHHigh Performance, Dual Port, Programmable 1/10/25/40/50/100/200GbE Storage AdapterChelsio’s T72200-FH is a dual port 40/100/200GbE SmartNIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, virtualization, security, and other datacenter networking applications. The seventh generation T7 ASIC technology from Chelsio provides the highest performance and efficiency, with dramatically lower host-system CPU communications overhead thanks to on-board hardware that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up the host CPU cycles for the user applications. As a result, the system benefits from higher bandwidth, lower latency, and reduced power consumption. It also provides a flexible direct data placement capability for regular TCP sockets, with all the benefits of zero-copy and kernel bypass without rewriting the applications.
 T7450High Performance, Quad Port, Programmable 1/10/25/50GbE Storage AdapterChelsio’s T7450 is a quad port 1/10/25/50GbE Smart NIC with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, embedded, virtualization, security, AI, and other datacenter networking applications. Thanks to an on-board hardware, that offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN, and TLS/IPsec processing from its host system and frees up host CPU cycles for the user applications. As a result, the system has the benefits of higher bandwidth, lower latency, and reduced power consumption.
 T72200-DPUHigh Performance, Dual Port, Programmable 1/10/25/40/50/100/200GbE DPUChelsio’s T72200-DPU is a dual port 40/100/200GbE DPU with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, virtualization, security, and other datacenter networking applications. The T72200-DPU transport engine is a programmable DPU that can offload protocol processing per-connection, per-server, per-interface, while simultaneously providing complete stateless offload to traffic for non-offloaded connections (processed either locally or by the operating system stack on the host CPU, if available). The T72200-DPU also provides a flexible direct data placement capability for regular TCP sockets, with all the benefits of zero-copy and kernel bypass without rewriting the applications.
 T72200-FH-DPUHigh Performance, Dual Port, Programmable 1/10/25/40/50/100/200GbE DPUChelsio’s T72200-FH-DPU is a dual port 40/100/200GbE DPU with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, virtualization, security, and other datacenter networking applications. The T72200-FH-DPU transport engine is a programmable DPU that can offload protocol processing per-connection, per-server, per-interface, while simultaneously providing complete stateless offload to traffic for non-offloaded connections (processed either locally or by the operating system stack on the host CPU, if available). The T72200-FH-DPU also provides a flexible direct data placement capability for regular TCP sockets, with all the benefits of zero-copy and kernel bypass without rewriting the applications.
 T7450-DPUHigh Performance, Quad Port, Programmable 1/10/25/50GbE DPUChelsio’s T7450-DPU is a quad port 1/10/25/50GbE DPU with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, virtualization, security, and other datacenter networking applications. The T7450-DPU transport engine is a programmable DPU that can offload protocol processing per-connection, per-server, per-interface, while simultaneously providing complete stateless offload to traffic for non-offloaded connections (processed either locally or by the operating system stack on the host CPU, if available). The T7450-DPU also provides a flexible direct data placement capability for regular TCP sockets, with all the benefits of zero-copy and kernel bypass without rewriting the applications.

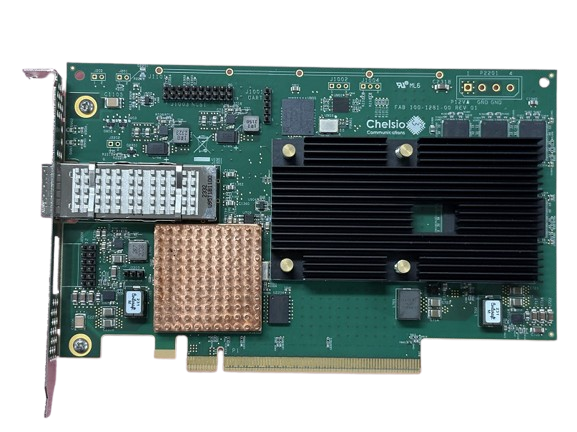

 T71200-iNIC-LHigh Performance, Single Port, Programmable 40/100/200GbE DPUChelsio’s T71200-iNIC-L is a single port 40/100/200GbE DPU with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, virtualization, security, and other datacenter networking applications. The T71200-iNIC-L transport engine is a programmable DPU that can offload protocol processing per-connection, per-server, per-interface, while simultaneously providing complete stateless offload to traffic for non-offloaded connections (processed either locally or by the operating system stack on the host CPU, if available). The T71200-iNIC-L also provides a flexible direct data placement capability for regular TCP sockets, with all the benefits of zero-copy and kernel bypass without rewriting the applications.
 T7-ServerHigh Performance, Quad Port, Programmable 1/10/25/50GbE ServerChelsio’s T7-Server is a quad port Server with a PCI Express 5.0 host bus interface, optimized for storage, cloud computing, HPC, virtualization, security, and other datacenter networking applications. T7-Server is built upon a high bandwidth and low latency architecture that offers offload support for a wide range of network, storage, virtualization, security, and cluster protocols operating over the same Ethernet link, using the exact same firmware, host software, and adapter. It offloads TCP/IP, UDP/IP, Unified RDMA (RoCEv2 and iWARP), iSCSI, NVMe-oF, NVMe/TCP, NVGRE, VXLAN and TLS/IPsec processing.
 T6 and Legacy AdaptersChelsio’s High Speed Legacy Adapters.
|
